Product Details

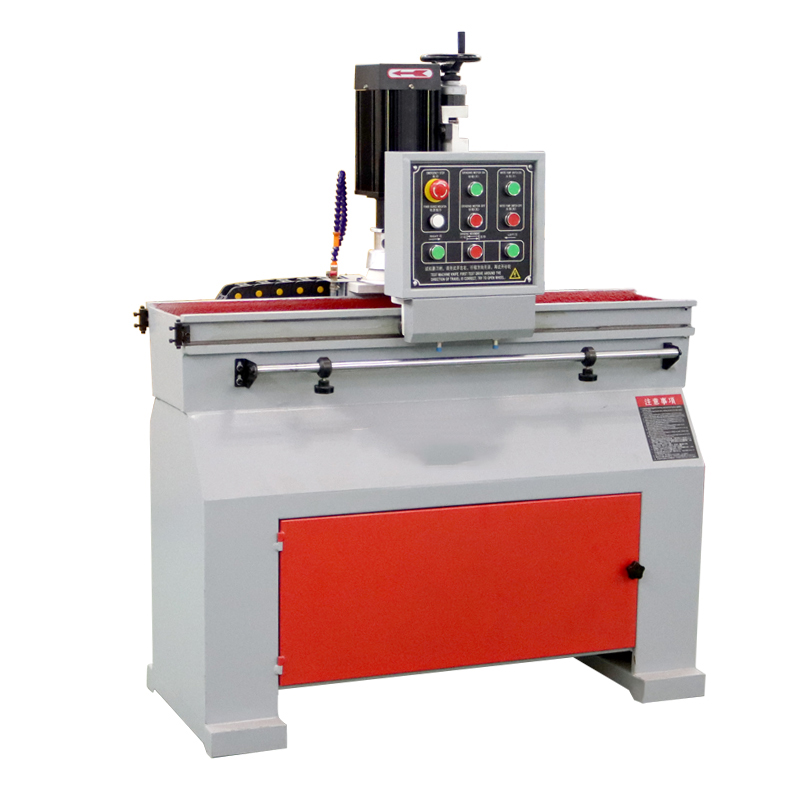

| Model | Unit | WK700 |
|---|---|---|
| Max Grinding Length | mm | 700 |
| Max Effective grinding length | mm | 650 |
| Max grinding thickness of cutter | mm | 20 |
| Max grinding width of cutter | mm | 150 |
| Adjust Angle Of Grinding Head | deg. | 0~90° |
| Grinding Wheel Rotate Speed | R.P.M | 2840 |
| Grinding wheel size （OD*T*ID） | mm | φ150*50*φ32 |
| Grinding head moving speed | m/min | 1-20 |
| Grinding head rotate speed | R.P.M | 1400 |
| Grinding Head Motor Power | kw | 4 |
| Feeding Motor Power | w | 60 |
| Water Pump Motor Power | w | 40 |
| Machine overall dimensions(L×W×H) | mm | 1400×1200×610 |
| Machine weight | kg | 230 |
