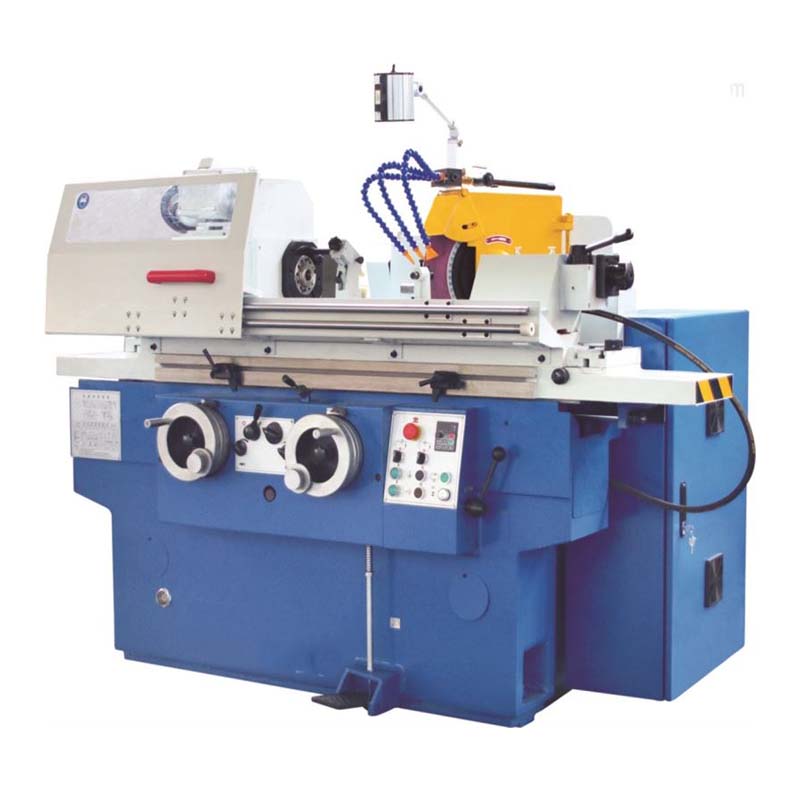

Suitable for grinding cylindrical and conical workpiece.
The workpiece of machine,cylindrical grinding wheel ,the inner circle of the grinding wheel ,oil pump and cooling pump by an independent motor drive.
It also has CNC type for this machine.
Detailed parameters:
| Model | Unit | WK1420*500 |
|---|---|---|
| Max.Grinding diameter of OD/ID | mm | Φ200mm/Φ30~Φ100mm |
| Max.Griding lenth of OD/ID | mm | 500 |
| Center height | mm | 135 |
| Max workpiece weight | kg | 50 |
| Workbench speed | m/min | 0.1~4 |
| Grinding wheel line speed | m/sec | 35 |
| Max travel of workbench | mm | 650 |
| Workbench rotation range | deg. | -5~+9° |
| External grinding wheel size | mm | Φ400x50xΦ203 |
| Inner spindle speed | r/min | 14000 |
| Tail stock taper morse | NO.4 morse | |
| Machine overall dimensions(L×W×H) | mm | 2000x1400x1600mm |
| Machine weight | kg | 2400 |
| Motor total power | kw | 5.625 |
| Work precision | ||
| Roundness(O.D/I.D) | μm | 1.5/2.5μm（O.D/I.D） |
| Uniformity of dia in longitudinal section (O.D/I.D) | μm | 5/8μm（O.D/I.D） |
| Surface roughness(O.D/I.D) | μm | Ra0.25/0.63μm（O.D/I.D） |
Extra Accessories:
Wheel Balancing stand
Center Rest Close type
Radirs Dresser
